Haibike AllMtn 5 Full Sus Electric Mountain Bike 2021 – Gloss Black

Be the First to Write a Review

Original price was: £5,299.00.Current price is: £5,249.00.

After a top of the range all terrain e-MTB that has all the components you need for a long, fun day on the track and trail? You won’t go far wrong with its long range battery, 4th gen Bosch Performance CX motor and excellent components.

Compare

Add ons & Accessories

Below is a list of our most popular and best selling products bought by our customers.

  • Cargo Waterproof Pannier Bag

    £49.99
    Add to basket Compare
  • XLC Light Set Front Rear Cupid Oberon

    £28.99
    Add to basket Compare
  • Beto Steel Track Pump

    £21.99
    Add to basket Compare
  • Raleigh Mission Pioneer Navy

    £19.99£24.99
    Select options This product has multiple variants. The options may be chosen on the product page Compare

Haibike AllMtn 5 Full Sus Electric Mountain Bike 2021 – Gloss Black

After a top of the range all terrain e-MTB that has all the components you need for a long, fun day on the track and trail? You won’t go far wrong with its long range battery, 4th gen Bosch Performance CX motor and excellent components.

Detail

A 625Wh in-tube battery gives all the juice you need for a long day’s riding, and combines this with the hard-kicking 85Nm of torque from the 4th generation Bosch Performance CX motor. The rest of the bike isn’t bad either!

A mullet bike with 29er front wheel and a 27.5” rear for the right balance of grip and sure footedness on the front with agility on the rear, complete with Maxxis Minion front and rear tyres for all the grip you need on most substrates. Agility and comfort is reinforced with the 160mm travel RockShox Lyrik Ultimate RC front forks and the rear, RockShox, Deluxe Select Plus air damper. This also comes with a Haibike remote dropper post for optimum poise on the trail. Where it comes to the drivetrain, the AllMtn 5 has a 12-speed Shimano Deore SLX M7100 gear system on a 10-51t rear cassette. Stopping power comes from the Shimano, Deore XT M8020 four-piston disc brakes on 203mm front and rear rotors

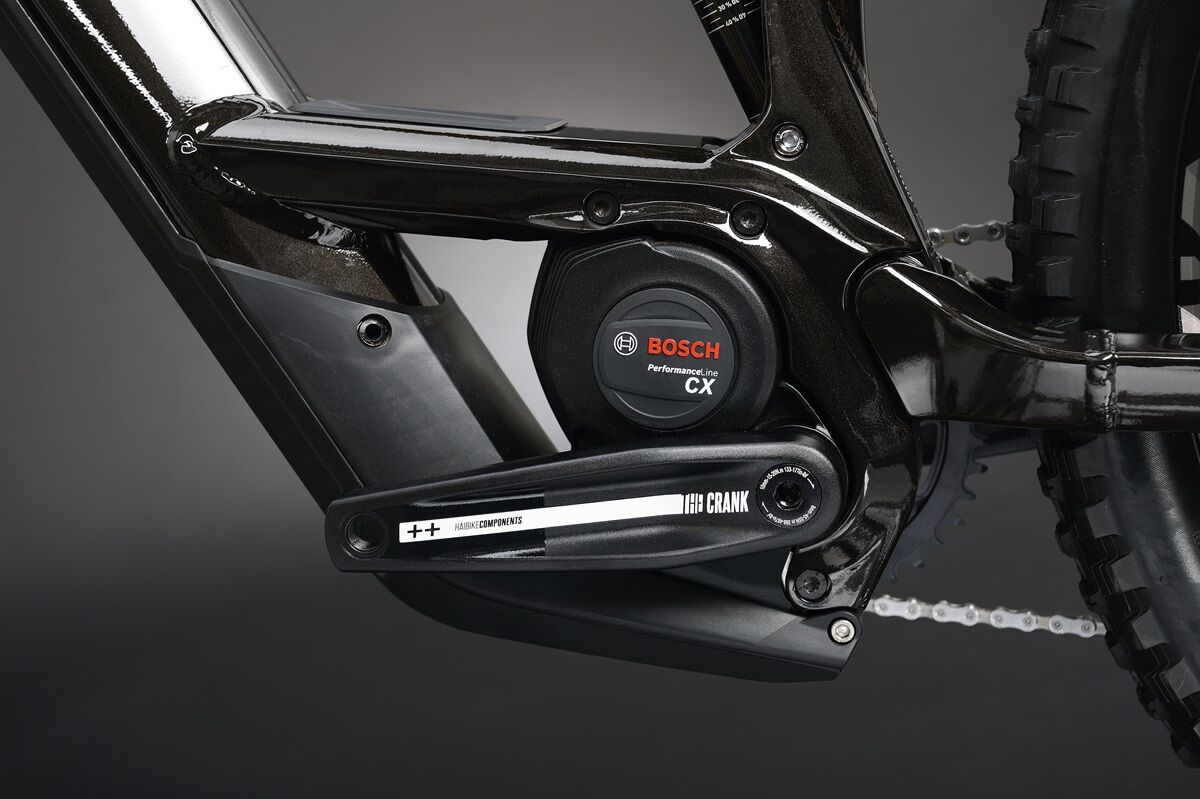

Bosch Performance CX GEN 4

"The Performance Line CX offers a unique eMTB experience: Compact, lightweight and with more power, it combines high-quality materials, an extremely powerful drive and high-end sensors. This brings eMountain biking on the trail to a whole new level. From model year 2021 with a torque of up to 85 Nm, new features in the motor control and a further development of eMTB mode – all as a software update. For a thrilling riding experience: more natural, intuitive and powerful and an absolute benchmark in its class."

Key Features:

  • Frame: Haibike XDURO AllMtn 6061 Aluminium
  • Motor: Bosch Performance CX GEN4, 250W, 85Nm
  • Battery: Bosch PowerTube 625Wh
  • Suspension Fork: RockShox, Lyrik Ultimate RC, Air/oil, Travel 160mm
  • Frame Damper: RockShox, Deluxe Select Plus, Air, Trunnion Mount, Travel 65mm
  • Gearing: Shimano Deore 12 Speed
  • Brakes: Shimano Deore XT M8020 4 Piston, 203mm
  • Display: Bosch Purion
  • Wheelset: DT Swiss H1900 27.5",29"
  • Tyres: Maxxis Minion DHF II, 63-622, 27.5"/29" x 2.5"

Full Specification & Componentry:

  • Frame: Aluminium 6061, Integrated motor (Bosch, SkidPlate, Tapered Head Tube, Thru axle M12 (1.75) x 148mm, Post Mount disc brake, Travel: 160mm
  • Engine: Bosch Performance CX GEN4, 250W, 85Nm, 25km/h
  • Display: Bosch Purion
  • Battery: Bosch PowerTube, 625 Wh
  • Charger: Bosch Standard Charger 4A
  • Fork: RockShox Lyrik Ultimate RC, Air/Oil, Travel: 160mm, Aluminium tube 1-1/8 – 1-1/2'' tapered, Thru axle
  • Shock Absorber: RockShox Deluxe Select Plus, Air

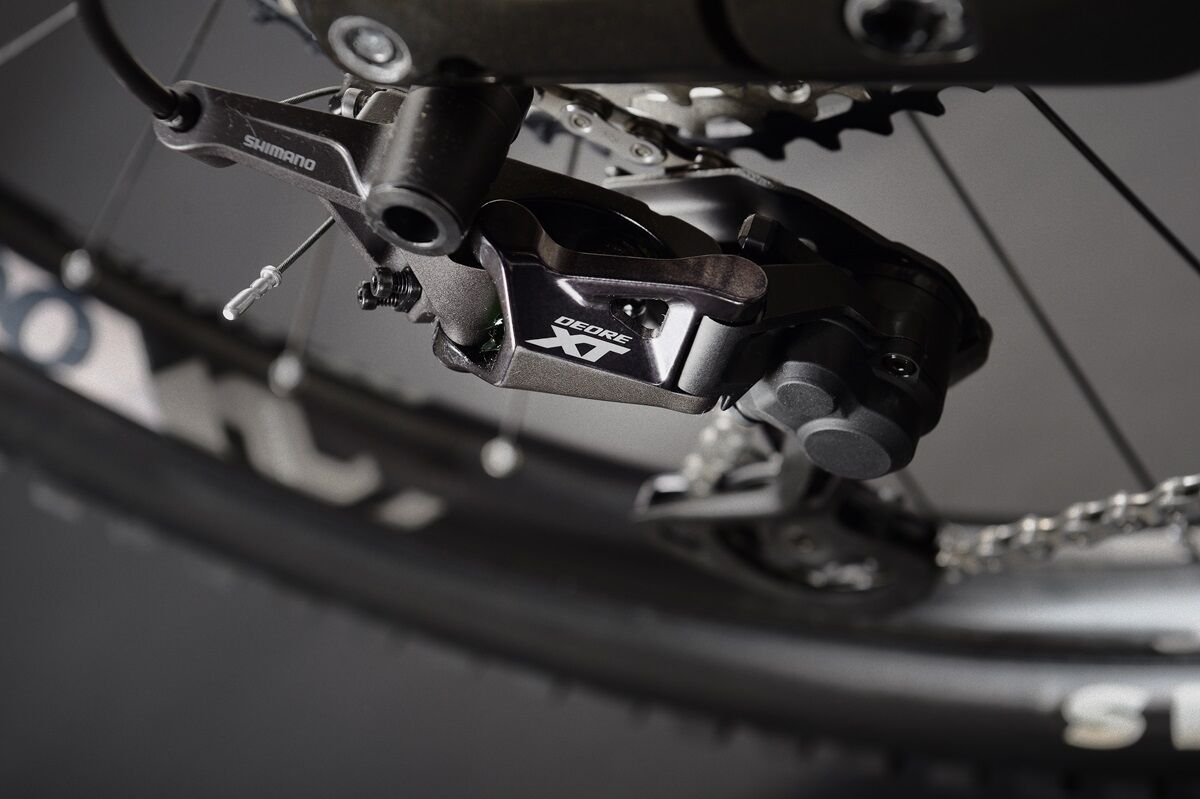

  • Rear Derailleur: Shimano Deore XT M8100 Shadow Plus, 12s
  • Shift Lever: Shimano Deore SLX M7100
  • Cassette Sprocket: Shimano M7100 Microspline, 10-51T
  • Chain: Shimano SLX M7100
  • Chainring: Haibike Components, 38T, Aluminium
  • Cranks: Haibike Components
  • Front Brake: Shimano Deore XT M8020, 4 pistons
  • Rear Brake: Shimano Deore XT M8020, 4 pistons
  • Discs: 203mm / 203mm
  • Front Tyre: Maxxis Minion DHF II, 65-622
  • Rear Tyre: Maxxis Minion DHR II, 71-584, folding
  • Rims: DT Swiss H1900
  • Front Hub: DT Swiss, Thru axle 15x110mm Boost
  • Rear Hub: DT Swiss, Thru axle 12x148mm Boost
  • Handlebar: Haibike Components TheBar +++ Gravity 780mm
  • Stem: Haibike Components TheStem 2, A-head, Diameter: 31.8mm
  • Saddle: Selle Royal Vivo
  • Seatpost: Haibike Components TheSeatpost ++, 31.6mm, Aluminium
  • Max weight allowed: 120 kg
Battery Size

17.4 Ah / 625 Wh

Wheel Size

27.5 in/29 in

Frame Style

Colour

Black

Frame Size

16 in / 41 cm, 17.5 in / 44 cm, 18.5 in / 47 cm, 19.5 in / 50 cm

Brake Type

Disc

Suspension

Full

Material

Alloy

Gears

12

Drive Type

Crank

Battery Make

Bosch

Motor Make

Torque

Brand

Haibike

Bosch Performance CX GEN 4

"The Performance Line CX offers a unique eMTB experience: Compact, lightweight and with more power, it combines high-quality materials, an extremely powerful drive and high-end sensors. This brings eMountain biking on the trail to a whole new level. From model year 2021 with a torque of up to 85 Nm, new features in the motor control and a further development of eMTB mode – all as a software update. For a thrilling riding experience: more natural, intuitive and powerful and an absolute benchmark in its class."

Mixed Wheel Size – 27.5"-29"

An innovative idea brought to life by the guys at Haibike. Adopting a 27.5" rear wheel married to a 29er front, this design allows for more ground clearence on those rocky slopes, but also aspires a posture perfectly suited to purpose. The AllMtn 5 packs the incredibly reputable DT Swiss H1900 wheelset.

Extra Information:

  • This Electric Bike will be SUPPLIED ASSEMBLED complete with charger and everything you see included.
  • Upon arrival, simple attachment of the pedals and the straightening of the handlebar will be required.
