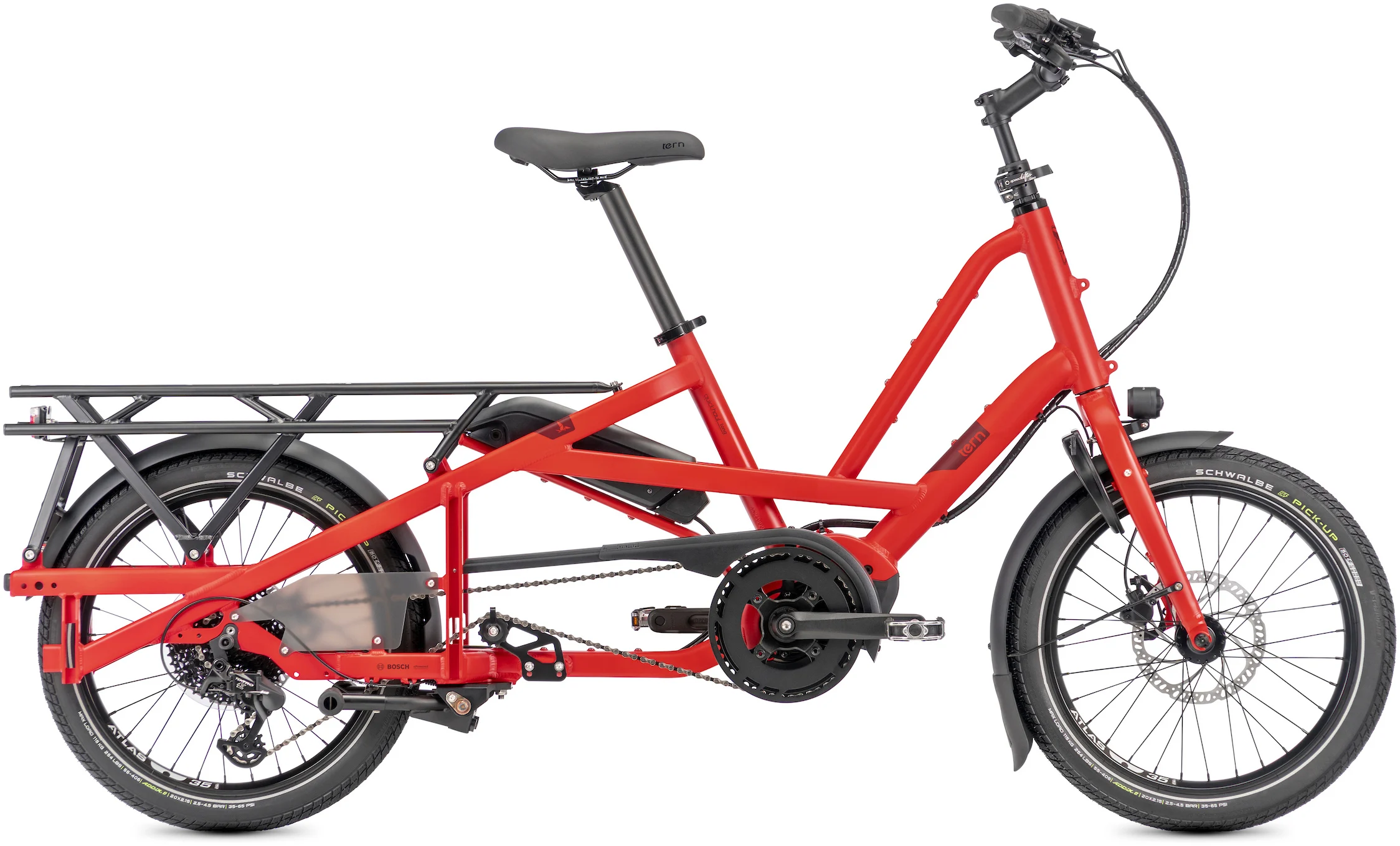

Tern Quick Haul Long D9 Electric Cargo Bike, 9 Speed – Satin Red

Tern Quick Haul Long D9 Electric Cargo Bike, 9 Speed – Satin Red

This bike will be given an upgraded 500Wh battery.

Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy manoeuvring past traffic queues, but built extra tough to safely carry 2 kids or your biggest supermarket hauls. And best of all, it’s a freer way to get around for you and your family without putting strain on the environment.

With a Max Gross Vehicle Weight of 190kg (419 lb), Quick Haul Long is more than capable of your daily hauling needs. Whether it’s spring gardening supplies or a week’s worth of groceries, the wide range of accessories will help you utilize all that load capacity and keep your hauls manageable on the road.

Riding while carrying all that weight may sound intimidating, but you’re in good hands with the Quick Haul Long. Its long wheelbase combined with a low center of gravity ensures your ride remains stable even with an ambitious haul, while a low step-through frame makes getting on and off effortless. And at under 30 kg (66 lb) including the battery, even smaller riders will find themselves capable of handling the Quick Haul Long.

Sharing a car with your spouse or partner makes sense, and it shouldn’t be any different for an e-bike. Quick Haul Long is made for easy sharing—with the flip of two levers, the stem and seatpost adjust in seconds without tools to fit riders 155 – 185cm (5’1″ – 6’1″) tall, while a low step-through frame facilitates easy mounting and dismounting.

Key Features:

• Speeds: 1 x 9
• Weight: 29.3 kg (64.6 lb)
• Gear Inches: 23″ – 89″ (1.87 – 7.13 m)
• Distance: Seatpost to Handlebar: 60 – 64 cm (23.6 – 25.2 in)
• Distance: Saddle to Pedal: 76 – 99 cm (29.9 – 39 in)
• Suggested Rider Height: 155 – 185 cm (61 – 72.8 in)
• Max Gross Vehicle Weight: 190 kg (418.9 lb)
• Max Rider Weight: 120 kg (264.6 lb)
• Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
• Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
• Stem: Speedlifter, adjustable, 3D forged stem, 31.8
• Headset: TH, cartridge bearings
• Handlebar: Low riser ergo, 31.8, 6061-AL
• Grips/Bar Tape: Velo ergonomic, lock-on
• Saddle: Velo Comfort
• Seatpost: 34.9 mm, 6061-AL, micro-adjust clamp
• Seatpost Clamp: Tern Collar
• Front Brake: Tektro hydraulic disc
• Rear Brake: Tektro hydraulic disc
• Brake Levers: Tektro hydraulic disc
• Front Hub: Disc, aluminum
• Rear Hub: 9 spd, disc, aluminum, Boost
• Spokes & Nipples: Stainless steel
• Rims: Tern Atlas H, cargo
• Tyres: Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
• Shifter(s): Tektro, 1 x 9 spd, trigger
• Rear Derailleur: Tektro custom for Tern, 1 x 9 spd
• Crankset: Tern custom, forged 6061-AL crankarm, anti-drop chainring
• Cassette/Freewheel: Tektro 11-42T, 9 spd
• Bottom Bracket: Motor integrated
• Chain: KMC for eBike, 9 spd
• Pedals: Urban with non-slip surface
• Shifter Cable & Housing: SP
• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph
• Battery: Bosch PowerPack 400
• Display: Bosch Purion, 4 mode selectable, walk assist
• Range: 400 Wh: 42-85 km (26-53 mi)
• Charger: 220V, 4A (EU)
• Bell: Aluminum
• Chainguard: SKS Chainblade
• Kickstand: Atlas Kickstand, for cargo
• Luggage Socket: Combo Mount
• Front Light: 90 lux, StVZO approved
• Rear Light: Herrmans
• Fenders: SplashGuard, stainless hardware
• Rack(s): Atlas L, 90 kg (198 lb) capacity
• Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
