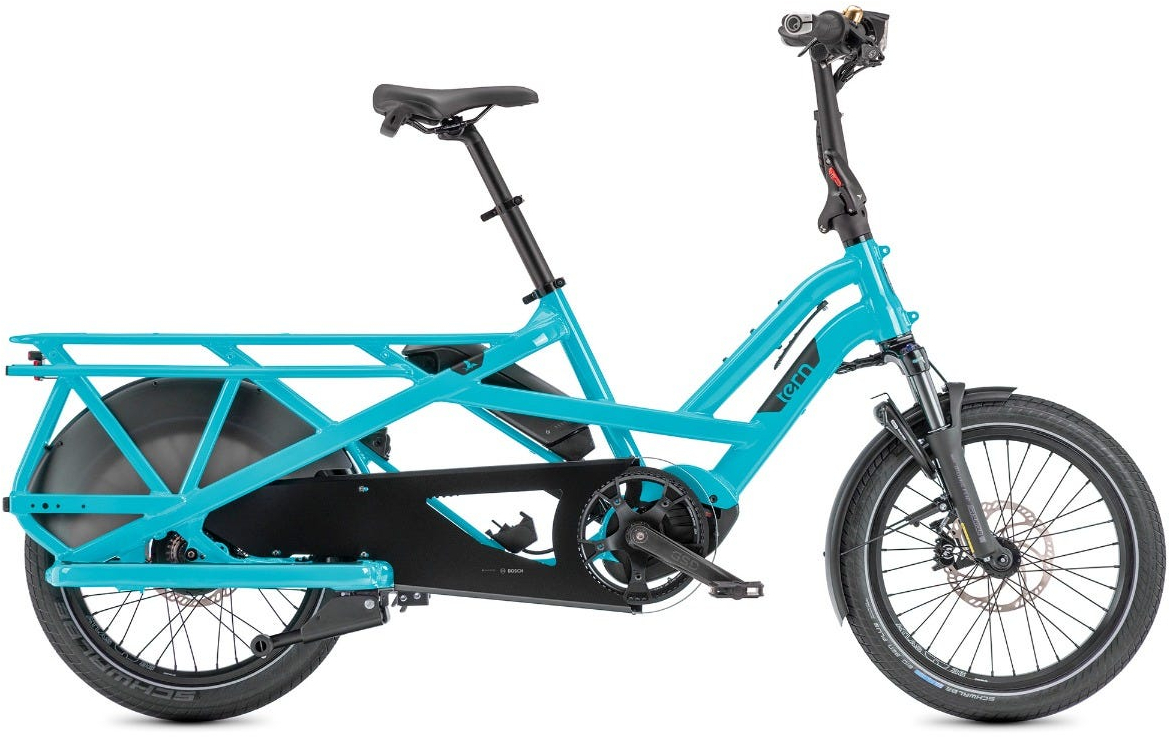

Tern GSD S00 Electric Cargo Bike, 500Wh – Blue

Tern GSD S00 Electric Cargo Bike, 500Wh – Blue

The Tern GSD S00 is a high-performance, compact cargo e-bike engineered to simplify heavy hauling and family transport while maintaining urban agility. Weighing 34.98 kg (77.1 lbs), it features a Bosch Cargo Line motor delivering 400% assist and 85 Nm of torque. Paired with the Bosch Dual Battery system (500 Wh), the S00 offers a range of 50-101 km (31-63 mi), perfect for extended rides and daily errands.

Tthe bike supports an impressive max gross vehicle weight of 200 kg (440.9 lbs) and a max rider weight of 120 kg (264.6 lbs). Its folding capability reduces it to a compact size of 176 × 40.5 × 83 cm in just 5 seconds.

The S00 features an Enviolo continuously variable transmission paired with a Gates Carbon Drive CDX belt for seamless, low-maintenance shifting. Schwalbe tires—Big Ben Plus at the front and Super Moto-X at the rear—provide excellent grip and puncture protection.

Ergonomics and comfort are prioritized with the adjustable Tern Andros stem, Physis 3D handlepost, and Tern GSD by Velo saddle. Its geometry accommodates riders from 150-195 cm (59.1-76.8 in). Safety is paramount, thanks to Magura MT5 hydraulic disc brakes with e-stop technology and an always-on RearStop Brake Light.

Key Features:

• Weight: 34.98 kg (77.1 lb)
• Gear Inches: 26″ – 99″ (2.08 – 7.91 m)

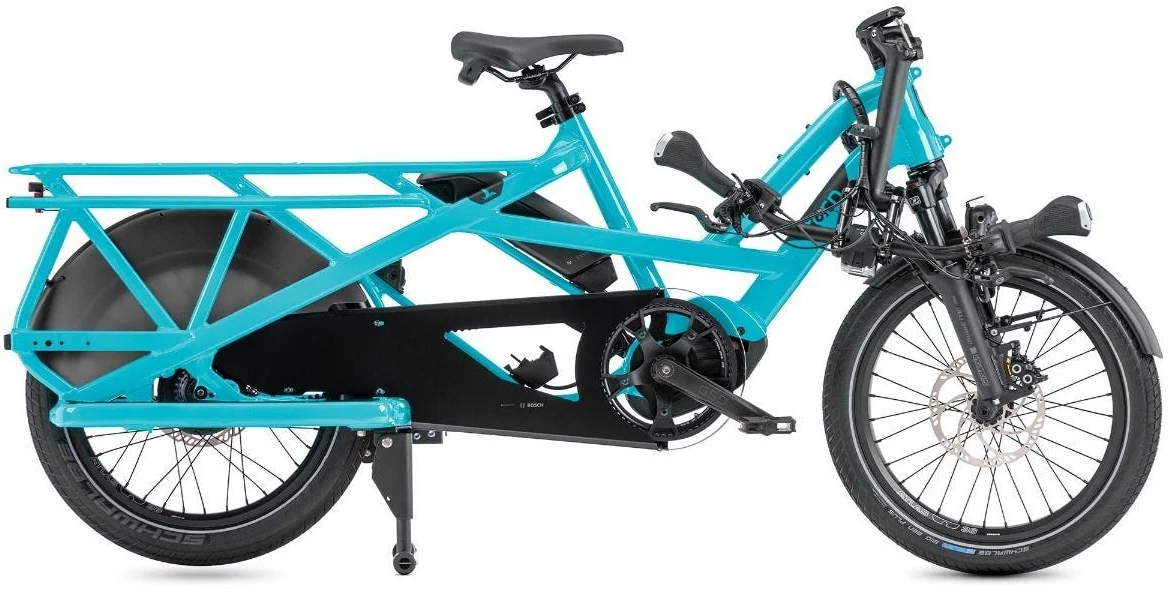

• Folding Size: 176 × 40.5 × 83 cm (69.3 × 15.9 × 32.7 in)
• Folding Time: 5 sec
• Suggested Rider Height: 150 – 195 cm (59.1 – 76.8 in)
• Max Gross Vehicle Weight: 200 kg (440.9 lb)
• Max Rider Weight: 120 kg (264.6 lb)
• Frame: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
• Fork: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
• Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Headset: Tern Flux Pro Taper, 1.5″, angular contact bearings, Physis integrated
• Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
• Saddle: Tern GSD by Velo, with rear handle
• Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
• Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• Brake Levers: Magura MT5 e-stop, hydraulic, with brake sensor
• Front Hub: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
• Rear Hub: Enviolo SP, 380% continuously variable range, Boost
• Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
• Tyres: F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
• Shifter(s): Enviolo, Twist
• Crankset: Tern GSD custom, Gates CDX CNC machined beltring
• Cassette/Freewheel: Gates CDX, precision CNC machined cog
• Bottom Bracket: Motor integrated
• Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph
• Battery: Bosch Dual Battery system, 500 Wh
• Display: Bosch Purion, 4 mode selectable, walk assist
• Range: 500 Wh: 31-63 mi
• Charger: 220V, 4A
• Kickstand: Atlas Lockstand, w/ remote unlock, patented technology
• Front Light: Tern Valo Direct, 190 lumens
• Rear Light: RearStop Brake Light, Always on brake light
