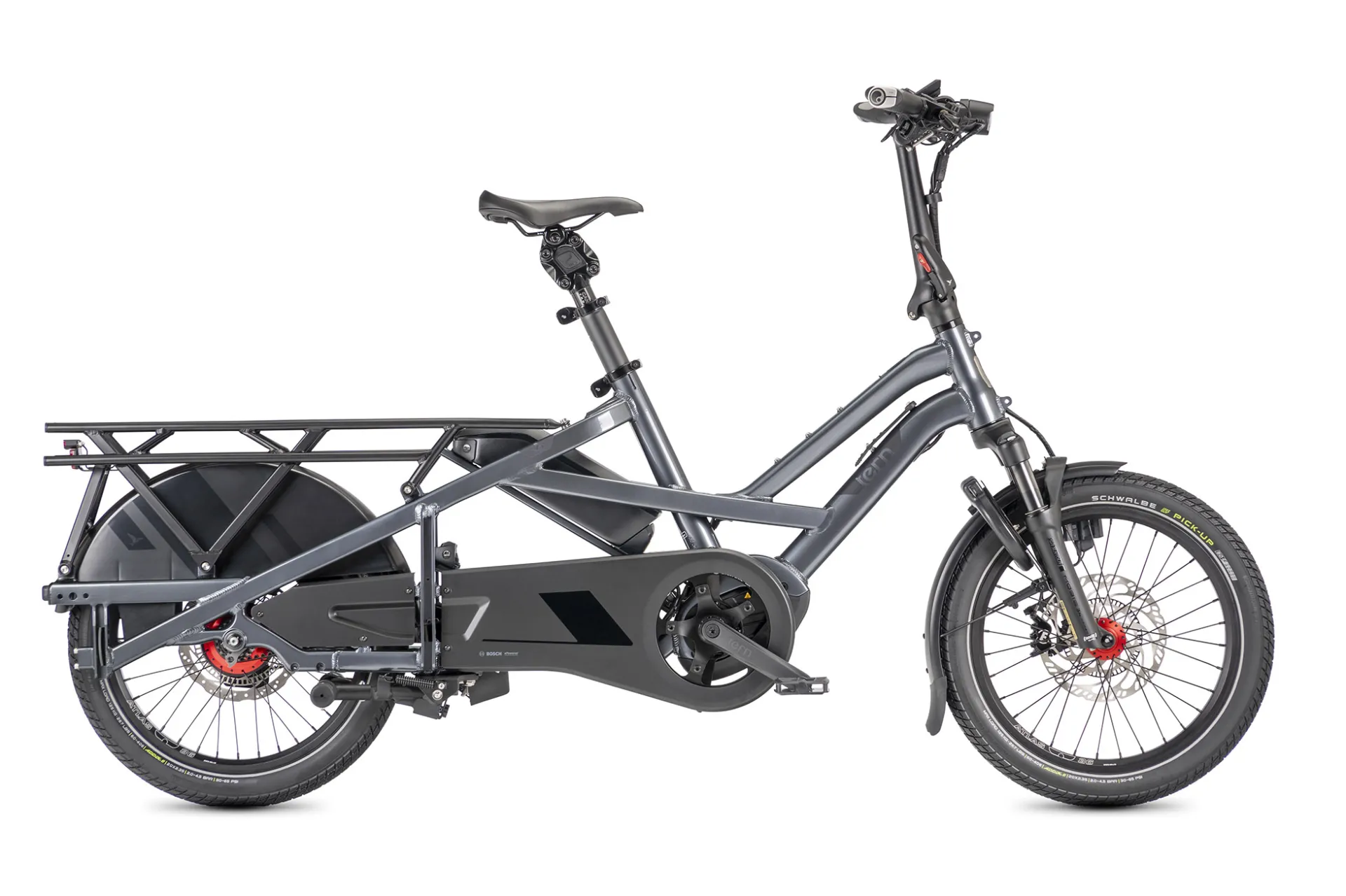

Tern GSD R14 Gen 3 Electric Cargo Bike, 800Wh – Grey

Tern GSD R14 Gen 3 Electric Cargo Bike, 800Wh – Grey

The new Tern GSD R14 takes the family electric cargo bike to a whole ‘nother level. Smarter than ever and packing even more muscle with a re-engineered frame that handles a max gross vehicle weight of 210 kg (463 lb), it’ll help you carry 2 loved ones and weekly grocery hauls with newfound ease—but it’s similar in length to a regular bike to remain surprisingly manageable.

Key Features:

• Speeds: 1 x 10
• Weight: 34.64 kg (76.4 lb)
• Gear Inches: 26″ – 98″ (2.04 – 7.80 m)
• Folding Size: 182 × 46 × 87 cm (71.7 × 18.1 × 34.3 in)
• Distance: Seatpost to Handlebar: 49 – 59 cm (19.3 – 23.2 in)
• Distance: Saddle to Pedal: 69 – 105 cm (27.2 – 41.3 in)
• Suggested Rider Height: 150 – 200 cm (59.1 – 78.7 in)
• Max Gross Vehicle Weight: 210 kg (463 lb)
• Max Load Weight: 210 kg (463 lb)
• Max Rider Weight: 130 kg (286.6 lb)
• Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
• Fork: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
• Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Headset: Tern Flux Pro Taper by FSA, 1.5″, angular contact bearings, Physis integrated
• Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
• Seatpost: Tern VLT (Very Large Telescope) with LightAction levers
• Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
• Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor
• Brake Cable & Housing: Magura, hydraulic
• Front Wheel: Tern Atlas, heavy duty cargo wheel
• Rear Wheel: Tern Atlas, heavy duty cargo wheel
• Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
• Rear Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
• Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
• Tyres: F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
• Shifter(s): Shimano Deore, 1 x 10 spd
• Rear Derailleur: Shimano Deore Shadow+
• Crankset: Tern GSD, forged 6061-AL DH crankarm
• Cassette/Freewheel: Shimano 11-42T, 10 spd
• Bottom Bracket: Motor integrated
• Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
• Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
• Battery: Bosch 500 PowerPack, Fast Swap, Dual Battery bays
• Display: Bosch Purion
• Range: 500 Wh: 40-102 km (25-63 mi)
• Charger: 220V, 4A (EU)
• Bell: Pitch Plus, brass
• Chainguard: Tern GSD, full chain cover
• Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
• Front Light: Ignis Headlight, Ultra wide low beam
• Rear Light: RearStop Brake Light, Always on
• Fenders: F: Aluminum R: GSD wheel guard
• Rack(s): Atlas G, 100 kg (220 lb) capacity
• Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
