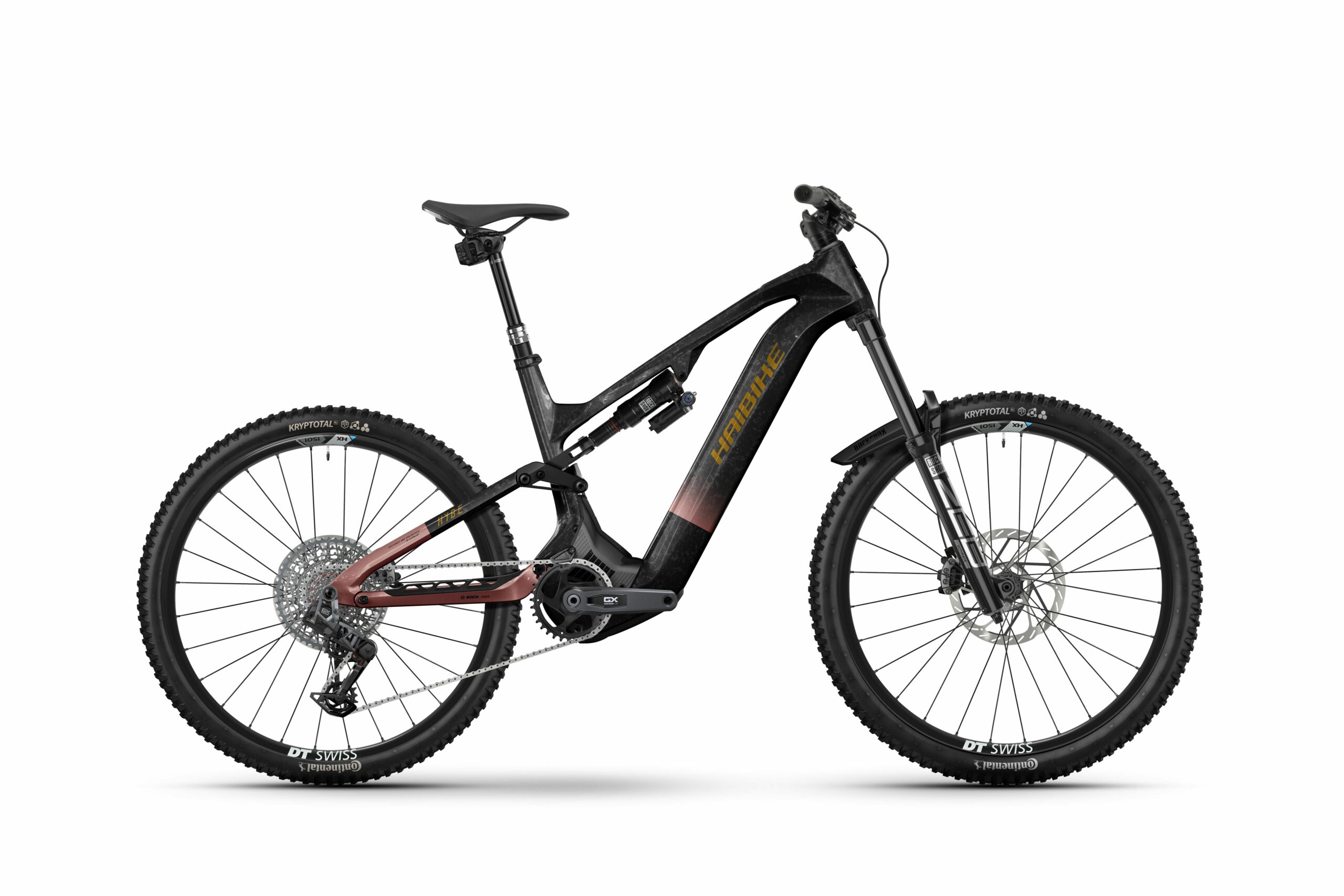

Haibike HYBE 2025 CF 11 Full Suspension EMTB – Carbon/Copper/Gold

Haibike HYBE CF 11 Full Suspension EMTB – Carbon/Copper/Gold

The Haibike Hybe CF 11 2025 is a full suspension electric bike designed to push the boundaries of modern mountain biking. With an ultra-light carbon frame and an 800 Wh Bosch PowerTube battery, it offers exceptional power and autonomy to tackle varied terrain. Equipped with high-end Rockshox suspensions and a Bosch Performance CX motor, this model ensures optimal comfort and performance on all types of trails. Its 29″ and 27.5″ wheels, its Sram Eagle transmission and its Sram Maven Ultimate hydraulic disc brakes make it an agile, robust and high-performance bike, ready to take on the biggest challenges.

Key Features:

• Size – S, M, L, XL
• Maximum weight supported (kg) – 135 kg
• Front fork type – Suspension
• Suspension type – Full suspension
• Front travel – 170 mm
• Rear travel – 160 mm
• Fork – Rockshox , ZEB Ultimate 170mm
• Frame – MTB Fully, Carbon
• Shock absorber – Rockshox , Super Deluxe Ultimate Air
• Handlebar width – 800 mm
• Seatpost material – Aluminum
• Length of the stem – 35 mm
• Hanger – Race Face , Era Carbon
• Headset – Acros, BlockLock
• Saddle – Prologo , Proxim W450 Performance
• Seat post – Rockshox , Dropperpost, Reverb AXS Teleskope, Dia. 34.9mm
• Gallows – Race Face, Turbine R
• Battery capacity – 800 Wh
• Battery location – Powertube
• Maximum assisted speed [km/h] – 25 km/h
• Engine torque [Nm] – 85 Nm
• Battery – Bosch, InTube 800Wh
• Charger – Bosch, Standard Charger 4Ah
• Screen – Bosch, System Controller + Mini Remote
• Engine – Bosch, Performance CX
• Head tube angle – 65 degrees
• Head tube length [mm] – 110mm, 120mm, 130mm, 140mm
• Range [mm] – 425mm, 456mm, 486mm, 516mm
• Height [mm] – 630mm, 639mm, 648mm, 657mm
• Seat tube angle – 65 degrees
• Seat tube length [mm] – 400mm, 430mm, 460mm, 490mm
• Top tube length [mm] – 558mm, 592mm, 625mm, 657mm
• Wheelbase [mm] – 1206mm, 1242mm, 1276mm, 1310mm
• Wheel size – 29″ and 27.5″
• Tire – Continental , Kryptotal-F, 60-622
• Rear tire – Continental , Kryptotal-R
• Front wheel – DT Swiss , HXC1501 29″
• Rear wheel – DT Swiss , HXC1501 27.5″
• Rear brake assembly – Post Mount
• Front brake – Sram, Hydraulic Disc Brake, Maven Ultimate, 220mm
• Rear brake – Sram, Hydraulic Disc Brake, Maven Ultimate, 200mm
• Brake lever – Sram, Maven Ultimate adjustable
• Brake discs – Sram, DB Rotor HS2 rounded 220 mm / 200 mm
• Number of cassette teeth – 10-52 teeth
• Crank teeth – 36 teeth
• Number of speeds – 12
• Cassette – Sram, XS 1270 Transmission
• Chain – Sram, Chain, T-Type GX Eagle
• Chain guide – Haibike, Nylon directmount
• Pedal board – Sram, XO Eagle 165mm
• Rear derailleur – Sram, GX Eagle T-Type AXS 12 speed
• Speed – Sram, Derailleur
