Falcon Zone Hybrid Electric Bike, 10.4Ah – Black

Falcon Zone Hybrid Electric Bike, 10.4Ah – Black

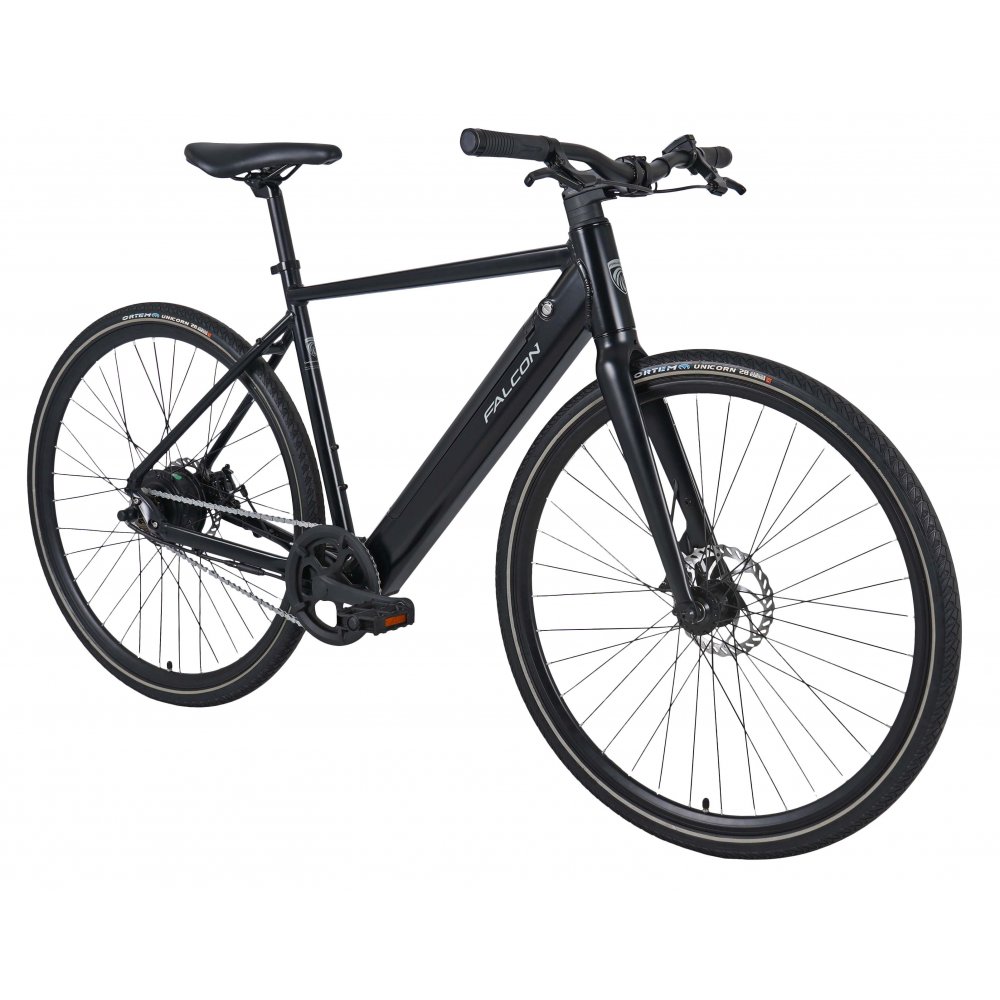

Introducing the all-new Falcon Zone – a sleek electric hybrid bike that has been designed from the ground up for hassle-free riding in urban environments.

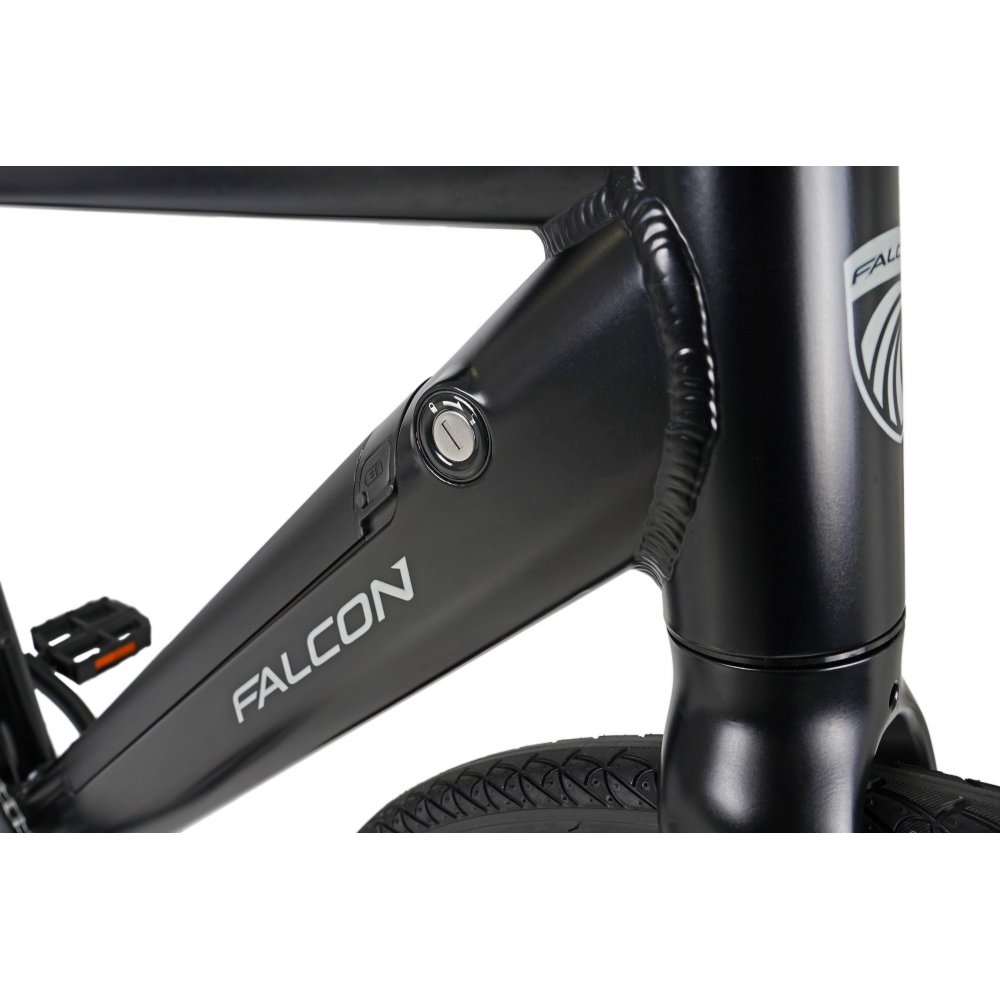

Equipped with a reliable and almost maintenance-free single speed drivetrain to eliminate the need for gear servicing, and benefiting from 5 modes of power assist from the rear hub to drive you along the flats and glide up hill. The slim, lockable battery integrates neatly within the down tube, and added puncture protected tyres with reflective strips on the sidewalls improve reliability and visibility.

The 375wh battery delivers up to 40 miles of range and can be charged from flat in 5 hours either on the bike or when the battery is removed from the bike, meaning no matter where your bike is parked, charging can take place inside.

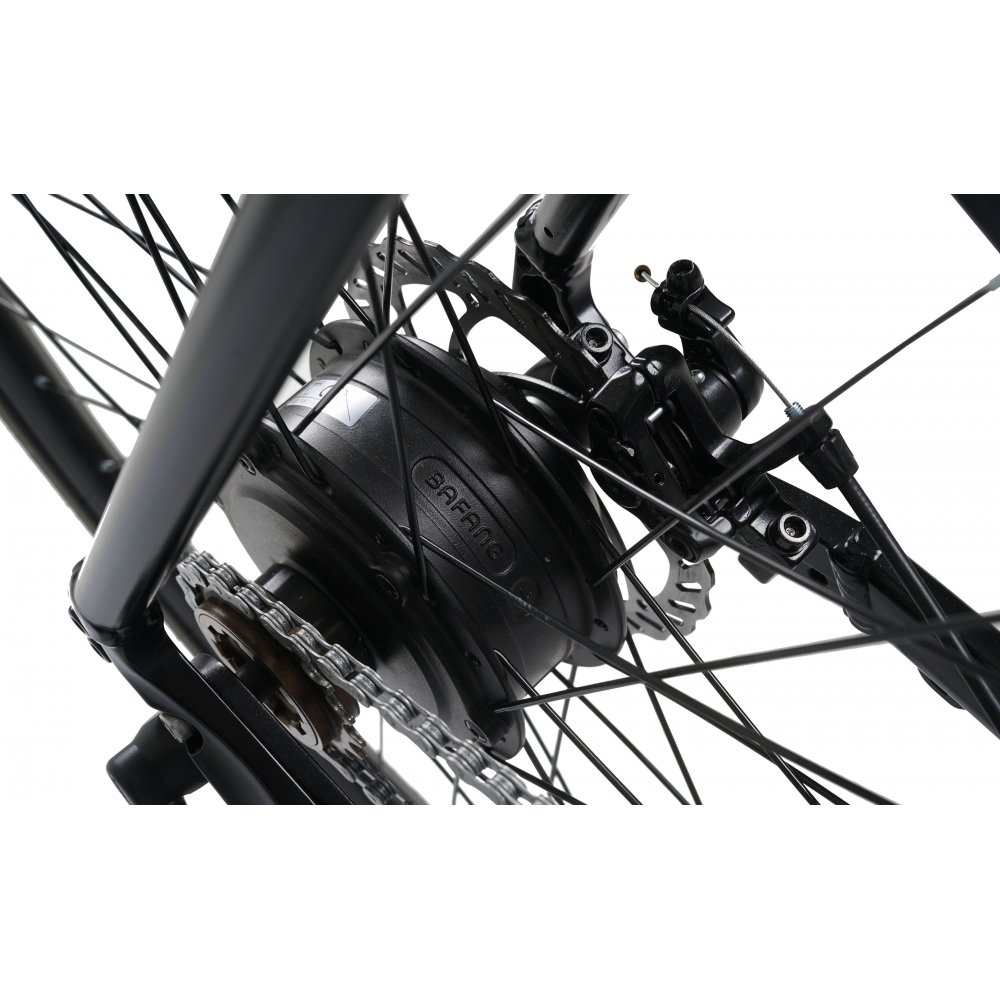

The Zone is powered by the well regarded Bafang rear hub motor system that delivers 32nm of torque, making light work of hills and cruising along flat terrain a breeze. The motor’s 5 power modes can be selected using the sleek and simple handlebar display which also shows the battery level and current speed. Mode 1 is perfect for a little extra assistance while mode 5 is there to really help on the hills. However you choose to use the power assist, you’ll benefit from the reliability of Bafang and the joy of riding an electric bike. We’ve also fitted a walk assist mode that engages the motor to help drive the bike when pushing up steep hills.

For performance and peace of mind, the Zone is equipped with low maintenance cable disc brakes for powerful braking in even the worst of conditions. The Zone is equipped with a carefully designed crossbar aluminium frame that is suitable for riders 5’4” to 6’2” (162cm to 188cm).

Key Features:

• Maximum Range – 40 miles / 64km
• Recharge Time – 5 hours
• Maximum Assisted Speed – 15.5mph / 25kmh
• Motor – Bafang rear hub motor, 32nm torque
• Motor Type – Rear hub motor
• Motor Torque – 32nm
• Battery – 36V 10.4Ah, 375wh, Integrated battery with Panasonic cells, Removable for charging on or off the bike
• Battery Type – Integrated
• Charger – 42V 2A, 3 pin UK plug

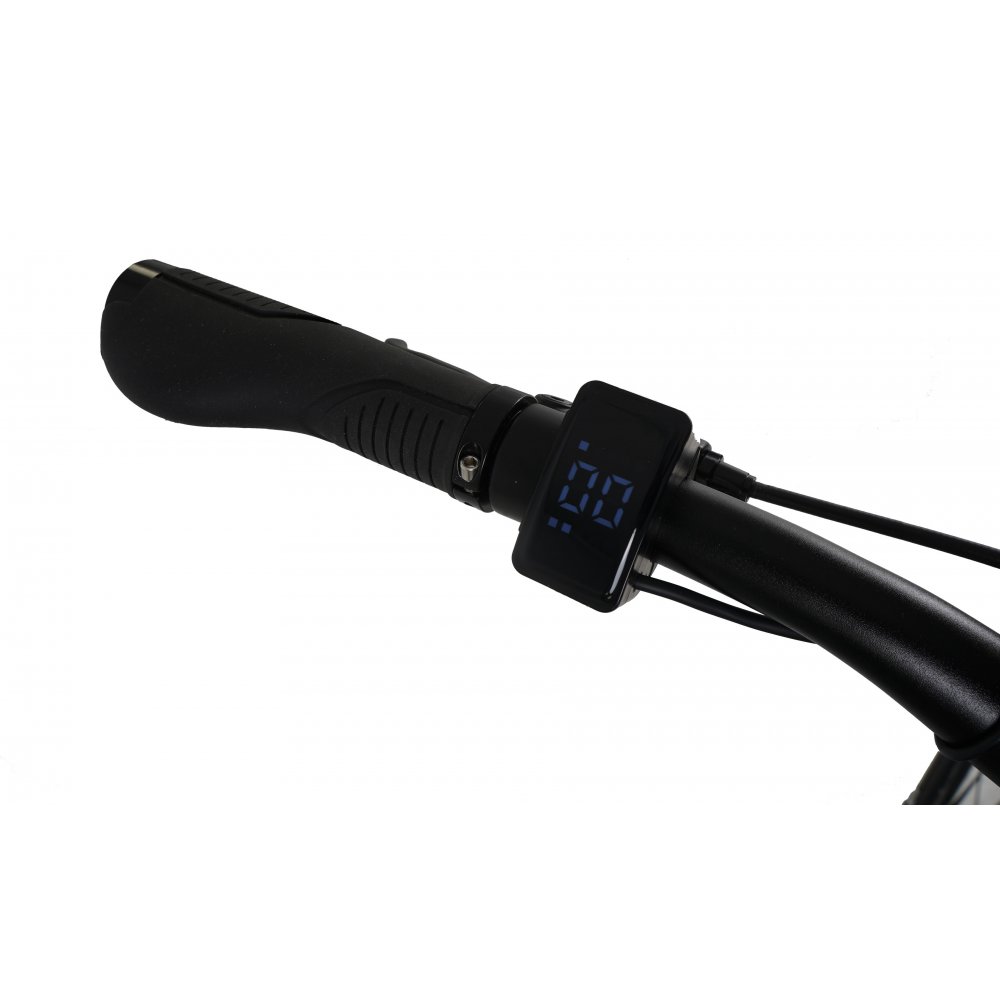

• Display  – Toplogy DZ40 LCD Display with mode selection, battery level and current speed
• Speed Sensor – 12 point cadence sensor
• Frame – 6061 aluminium cross bar frame, Internal cable routing, Fully integrated removable battery, 700c wheels
• Frame Size – One size – 51.5cm / Recommended Rider Height – 5’4” to 6’2” (162cm to 188cm)
• Fork – 700c alloy fork, Internal cable routing
• Headset – Sealead bearings
• Handlebar – Alloy, 660mm wide, 25mm rise, 7° backsweep, Black

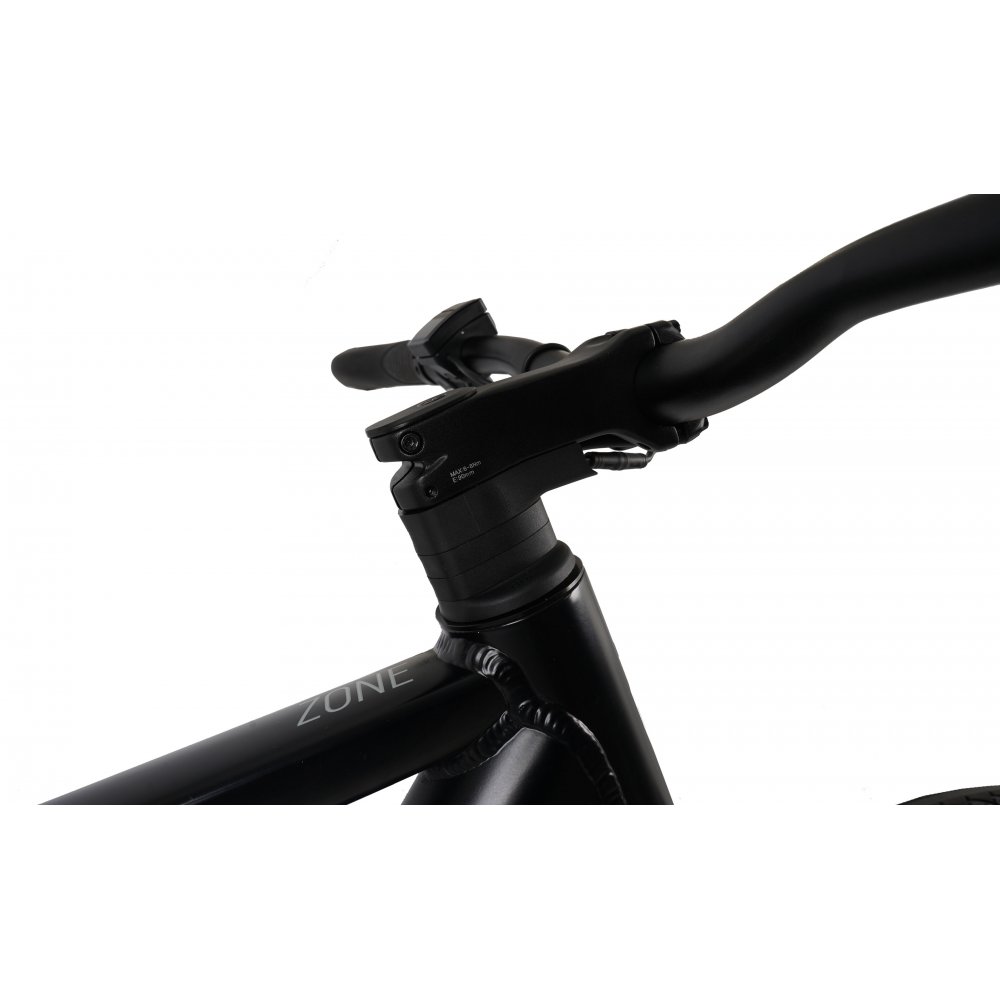

• Stem – Aluminium, Internal cable routing, 90mm reach, 31.8mm
• Grips – Ergonomic comfort, Lock on, Black
• Chain – KMC Z7
• Cassette/Freewheel – 18T freewheel
• Chainset – Black, 44T, 170mm crank arms
• Number of Gears – 1 with 5 levels of assistance in eBike display
• Bottom Bracket – Cartridge BB
• Pedals – City style pedals, Black
• Brakes – JAK7 mechanical disc brakes, Semi-metallic pads, 160mm rotors
• Brake Levers – Alloy, Black
• Front Hub – Alloy with quick release, Black
• Rear Hub – Bafang rear hub motor, 32nm torque
• Rims – Alloy, 700c, Black
• Tyres – Ortem Unicorn, 3mm puncture protection and reflective side wall, 700x35c
• Saddle – Big Ben B7700, Memory Foam padding
• Seat Post – Alloy, 27.2x300mm, Black
• Weight – 19.30kg
