Cube Kathmandu Hybrid One 750 Electric Bike 750Wh, Bosch CX7 – Blue

Cube Kathmandu Hybrid One 750 Electric Bike 750Wh, Bosch CX7 – Blue

It’s got the looks and comfort of a traditional Trapeze framed electric bike, but the Kathmandu Hybrid’s understated appearance disguises a very cleverly thought-out frame. For starters, it incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you’d expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you’ll love. It’s the perfect way to add accessories and carry whatever you need with you.

Gear and brake cables need a way to get from handlebar controls to the frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

The Fully Integrated Battery system tucks the power of Bosch’s battery out of sight, safely inside the confines of your bike’s downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

Key Features:

• Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
• Size: Trapeze: 50cm, 54cm
• Suspension Fork: SR Suntour NVX30 Coil, 100mm
• Drive Unit: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• Remote: Bosch LED Remote
• Battery: Bosch PowerTube 750

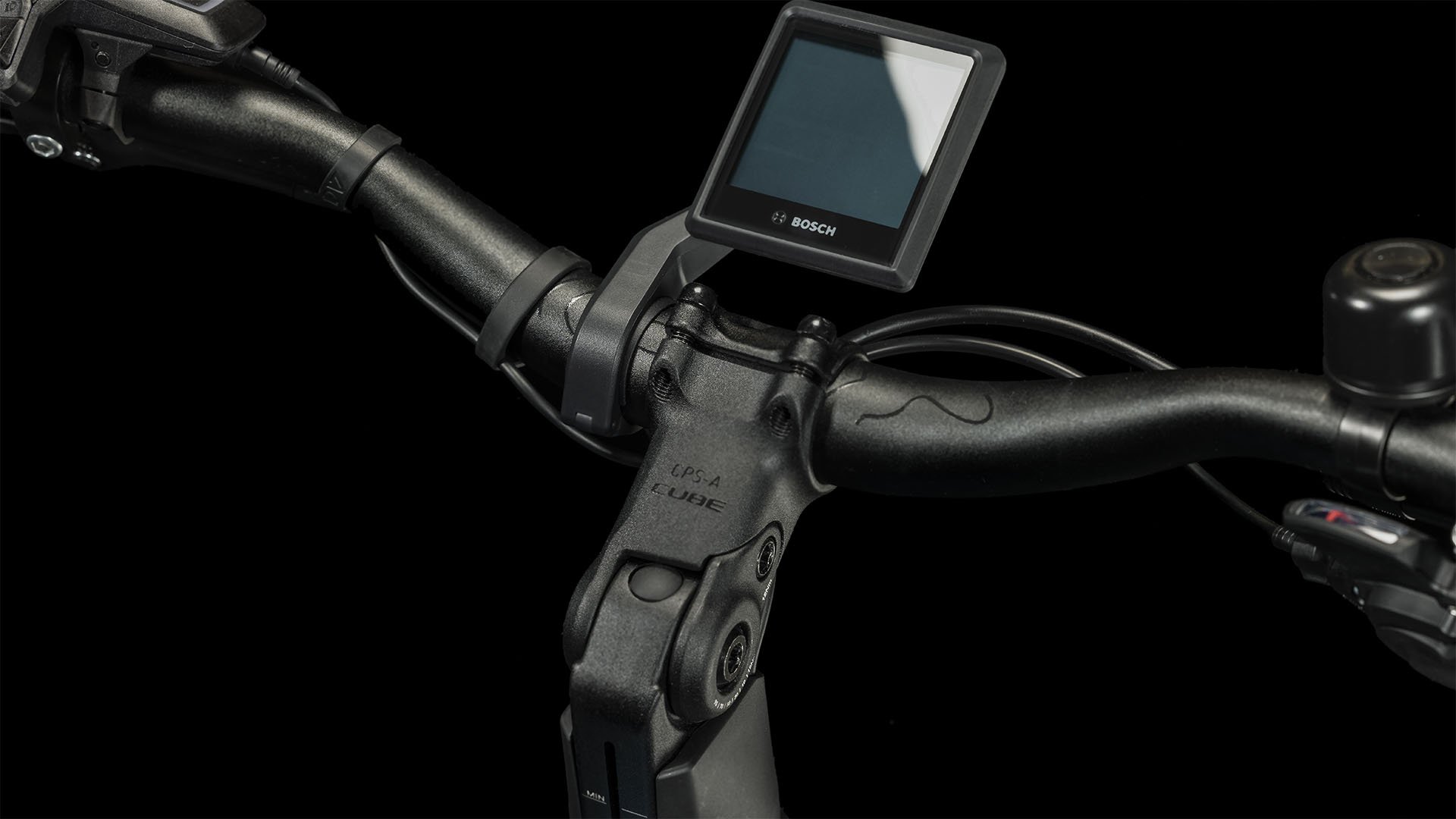

• Display: Bosch Purion 200 w/ Integrated Display
• Charger: Bosch 2A
• Brake System: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Rear Derailleur: Shimano Cues RD-U4000-GS, 9-Speed
• Shifters: Shimano Cues SL-U4010- Rapidfire-Plus
• Crankset: ACID E-Crank, 40T, 175mm (EE: 170mm)
• Cassette: Shimano Cues CS-LG300, 11-46T
• Chain: Shimano CN-LG500
• Headset: M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8″ (ZS 44mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
• Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
• Handlebar: CUBE Comfort Trail Bar, 700mm
• Grips: ACID Travel Comfort
• Rims: CUBE EX23, 36H, Disc
• Front Hub: Shimano HB-QC300, QR, Centerlock
• Rear Hub: CUBE Engineered By Newmen, 12mm, Boost, Centerlock
• Tyres: Schwalbe Big Ben, Performance, K-Guard, 55-622
• Saddle: Natural Fit Sequence Comfort
• Seat Post: CUBE Suspension Seatpost HD, 30.9mm
• Pedals: ACID PP Trekking

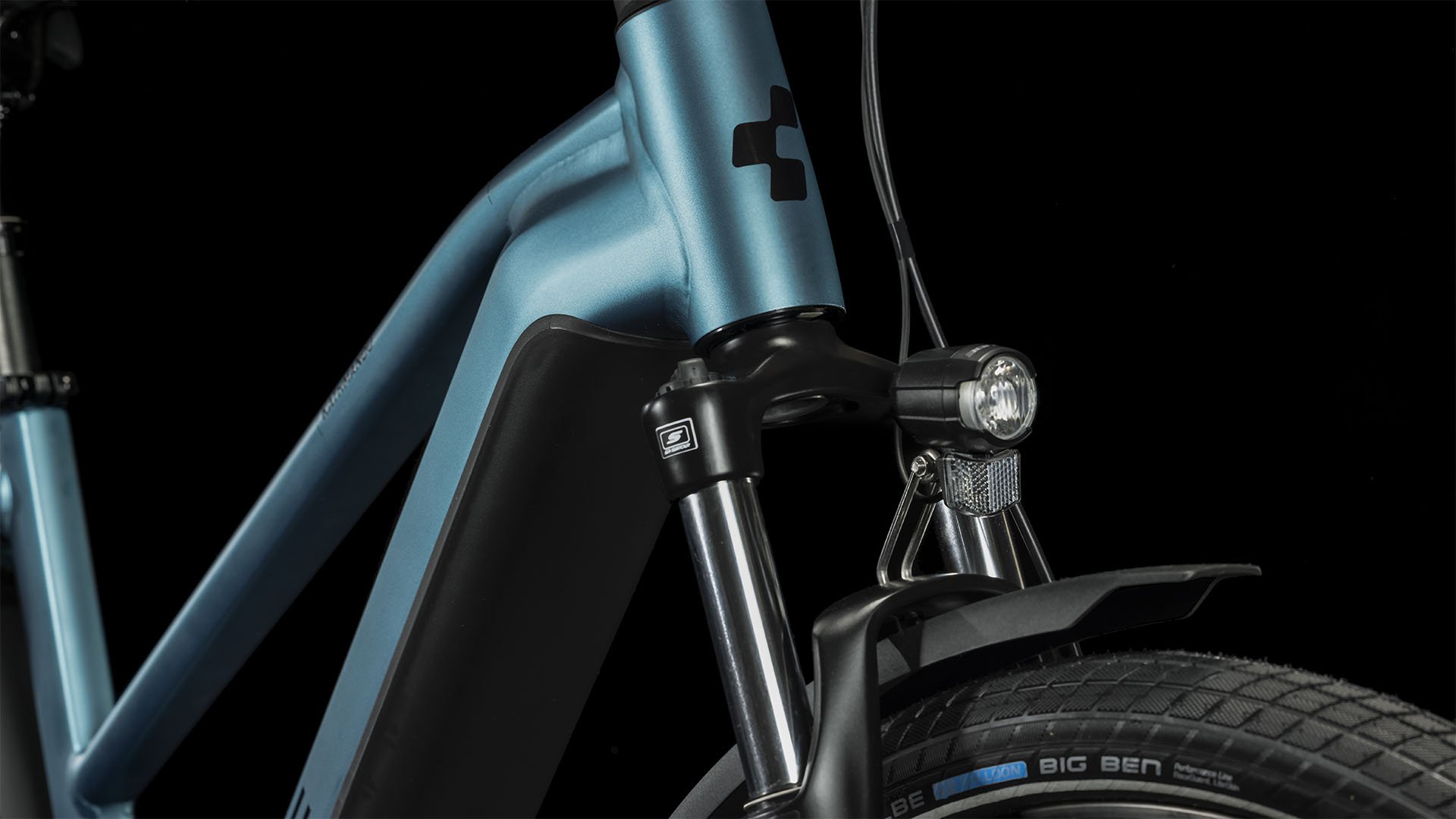

• Front Light: CUBE Shiny 50 Lux, 12V, DC
• Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
• Kickstand: ACID FM Pure Kickstand
• Mudguards: ACID 65 Integrated Carrier 3.0
• Bell: Easy Bell

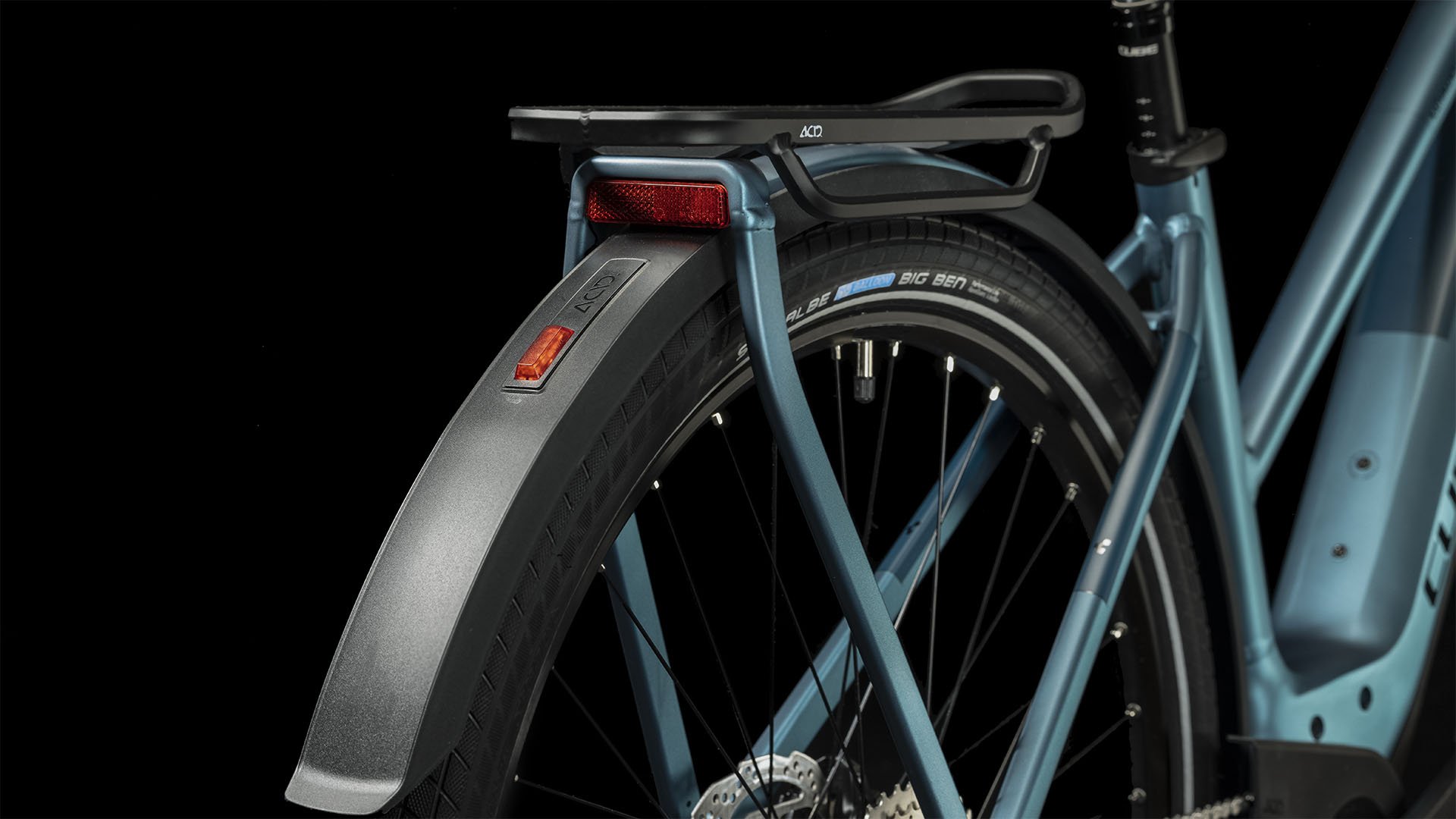

• Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
• Weight: 27.3 kg
